Using Measuring Templates For Precise Caravan Fit: Avoid Costly Mistakes And Get A Perfect Mattress First Time

Accurate measuring is the single biggest factor in getting a mattress that fits your caravan properly, and 99% of measurements for custom caravan or motorhome covers are now handled by production teams using standardised templates, because precision matters that much. Using clear measuring templates for your own caravan mattress gives you the same level of accuracy, so you avoid gaps, overhangs, and expensive returns.

Key Takeaways

Why Measuring Templates Matter For Caravan Mattress Fit

Caravan beds rarely follow simple domestic sizes, and even a 1–2 cm error can result in a mattress that rubs a wall, fouls a cupboard door, or leaves a draughty gap at the head. A structured measuring template turns an awkward, three-dimensional caravan space into a clean, repeatable set of dimensions we can build from accurately.

Templates also give you peace of mind. Instead of guessing at a “small double” or “narrow single”, you record every curve, radius and step, then double-check the numbers before we start cutting foam or latex.

In practice, a measuring template is your bridge between a real caravan interior and the CAD drawings we use to cut materials. Once you supply an accurate outline, we can match it to existing files or draw it from scratch for a precise fit.

For many owners, that means turning an uncomfortable, thin factory mattress into a correctly sized, supportive bed that fits right into every corner of the frame.

Understanding Caravan Shapes And Why Templates Help

Unlike a standard home bed, caravan berths often have curves, chamfered corners, tapering sides or wheel-arch cut outs. Simply measuring the longest and widest points rarely gives enough information to create a tight, clean fit.

Measuring templates let you record not just size but shape. By marking distances along each edge and showing which corners are square, rounded or angled, you give us the detail we need to reproduce the bed accurately.

For example, narrow beds that run parallel to a caravan wall often need a cut out to clear a wardrobe or shower bulkhead. A template lets you show exactly how deep and wide that cut out needs to be.

Curved island beds and D-shaped layouts also benefit from templates, as the radii at the corners control how easily you can walk past or open doors without the mattress getting in the way.

How To Create A Simple Measuring Template At Home

You do not need specialist tools to create a useful caravan measuring template. A few large sheets of card or heavy paper, a marker pen and a tape measure are usually enough.

First, clear the bed base and lay your paper or card flat across it, taping pieces together if necessary so you cover the entire support surface. Then trace the edges carefully, following any curves or cut outs tightly with your pen.

Once traced, remove the template and mark key dimensions along each straight edge in centimetres. For curves, mark a few chord measurements or note the radius where possible, then photograph the template so you have a digital record as well.

Finally, write your name, caravan model, and which side is the head, foot, nearside or offside, so orientation is clear when we convert your template into a CAD drawing.

Using Templates For Bunk And Narrow Caravan Mattresses

Bunks and narrow singles are often squeezed into tight alcoves or above storage, which makes accurate measuring even more important. A template lets you show how close the mattress can run to walls, ladders or windows, so we can advise on ideal depth and corner shape.

Our Single ReVo™ Cool Gel Bunk Caravan Mattress is a good example of how depth and shape options combine with precise measurements to suit compact spaces, while still providing responsive Laytec™ comfort and ReVo™ cooling.

Narrow beds often need cut outs along one side to clear cupboards or bathroom walls. For layouts like that, a full-sized template that shows exactly where the cut starts and finishes along the length of the bed is far more reliable than a basic list of numbers.

Once we have that template, we can match it to our existing narrow and bunk CAD profiles or create a new one so the finished mattress sits neatly in place without wasted space.

Left And Right Cut Out Templates: Avoiding Orientation Errors

One of the most common mistakes we see is confusion between left-hand and right-hand cuts. In caravan language, “left” and “right” usually refer to the bed when viewed from the foot, facing the head, but many owners measure from the opposite direction.

A clear template solves this by showing the bed outline and a simple arrow for “head” and “foot”. When you then choose a product such as the Single ReVo™ Cool Gel Narrow Left Cut Out Caravan Mattress, we can confidently match your drawing to the correct orientation.

Similarly, if your layout needs a simple left or right cut rather than a full cut out, we will pair your template with designs like the Single ReVo™ Cool Gel Narrow Left Cut Caravan Mattress, which is already engineered for space-conscious side layouts.

By using templates, we remove guesswork, so you do not accidentally order a “mirror image” mattress that simply will not sit against your furniture correctly.

Rounded Corners, Curves And D-Shapes: Getting The Radii Right

Rounded and D-shaped caravan mattresses look appealing and free up floor space, but they rely on accurate curve measurements to work properly. Too tight a radius and you lose sleeping length, too loose and the mattress can press against doors or walls.

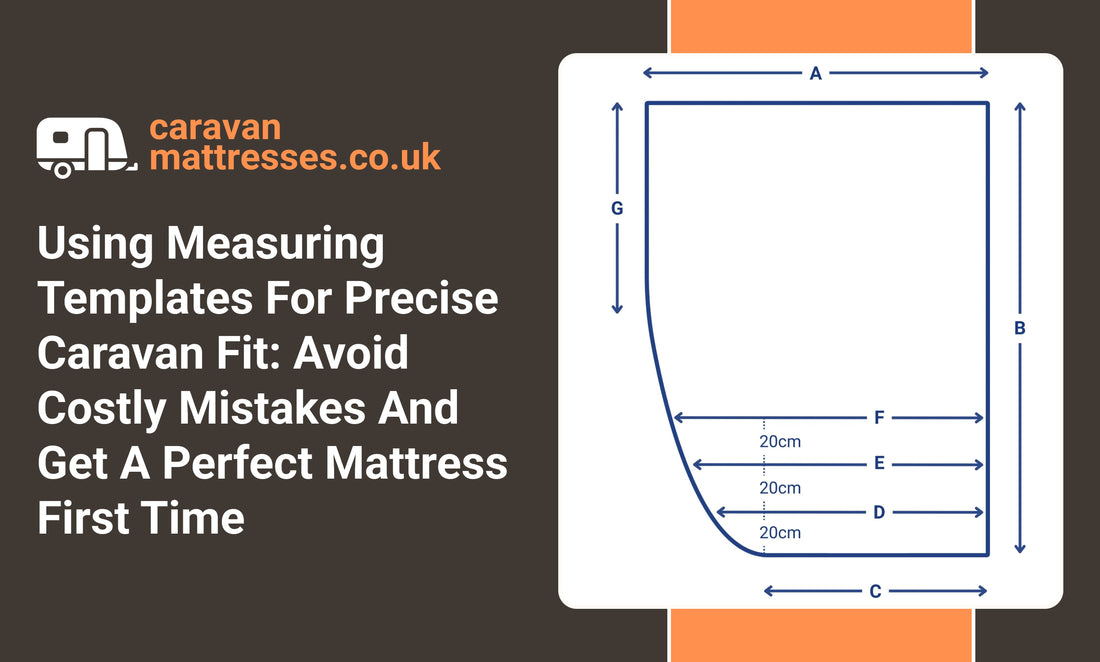

When you draw your measuring template, mark several straight-line measurements across the curve so we can calculate the radius. This is how we achieve clean fits on products such as the Single ReVo™ Cool Gel Narrow Right Curved Corner Caravan Mattress.

Island beds or near-side curved corners, like those shown in our hybrid and Masterpiece imagery, are often built from established shape libraries, but we still recommend a template if your caravan has been modified or you want to change mattress depth.

Templates also help us maintain walk-through space on island beds, by confirming exactly how far the curve can project without making the gap between mattress and wardrobe too narrow.

Corner Cut Offs And Obstructions: Working Around Real-World Layouts

Many caravans use a corner cut off to give access to a washroom or to clear a door swing. With a measuring template, you can show exactly where the diagonal starts, its angle, and how far it runs along each side.

We then translate that into products such as the Single ReVo™ Cool Gel Left Corner Cut Off Caravan Mattress or right-hand variants, ensuring the mattress follows your layout without obstructing everyday movement.

If your caravan has pipes, heater ducts or access hatches under the bed, templates also let you mark any areas that must stay clear. We can then advise on depth choices and base construction that will not interfere with these features.

This kind of planning is difficult to achieve by measurements alone, but a template makes the entire layout visible in one place.

Standard Rectangular Templates: When “Simple” Still Needs Precision

Even a straightforward rectangular caravan bed benefits from a measuring template. Caravans often have slight tapers that are not obvious to the eye, and walls that are not perfectly square to the bed base.

By tracing the actual support surface, you avoid ordering a mattress based on the widest and longest points, only to find it bunches against one corner. Products like the Single ReVo™ Cool Gel Rectangular Caravan Mattress and Comfisan™ Single Rectangular Caravan Mattress can then be cut exactly to your traced outline.

Templates also help confirm how much mattress depth your caravan can comfortably accommodate under lockers, windows or shelves. Once we know the true footprint, we can recommend the best combination of depth and comfort layers for your space.

For customers replacing thin factory foam, this approach means you get a significantly more supportive mattress without discovering later that the extra depth catches a cupboard door.

From Template To Finished Mattress: Our Production Process

Once you send us your measuring template, we check it against any existing CAD files for your caravan model. If there is a match, we confirm your dimensions and use the digital shape for cutting, which improves repeatability.

If your layout is unique or modified, we digitise your template and build a new CAD outline before we cut foams, latex or hybrid cores. This ensures every layer, from the support base to the comfort surface, follows your exact shape.

Throughout this process, your template is our reference document. It guides any queries about orientation, head and foot positions, and where features such as zips or split mattresses should sit.

By the time your mattress is vacuum packed and prepared for delivery, we have checked it against your template at multiple stages, so it arrives ready to drop straight onto your bed base.

Checking Your Template: Common Issues To Avoid

Before you send us a template, it is worth taking ten minutes to check a few common problem areas. First, confirm that head and foot are clearly marked and that you have indicated nearside and offside as they relate to your towing direction or usual use.

Next, re-measure key lengths and widths on both the template and the bed base to ensure they match closely. If you notice a discrepancy, adjust your drawing rather than “averaging” the numbers, as small errors can snowball along the bed.

If your template includes a curve or cut out, check that you have labelled the distances from the nearest corner or edge. This helps us position features accurately relative to the rest of the mattress.

Finally, add photos of the bare bed base and the template in position. These visual references are extremely helpful when our team reviews your order and confirms the final design with you.

Conclusion

Using measuring templates for precise caravan fit removes almost all the uncertainty from ordering a replacement or upgraded mattress. By turning your unique bed layout into a clear, scaled outline, you give us exactly what we need to build a mattress that fits first time and supports you properly.

Whether your caravan has simple rectangular singles, curved island beds, narrow bunks or complex cut outs, a well-made template, checked carefully, is the best investment of your time before you decide on specification, firmness and materials. We are always happy to talk you through the process, review your measurements, and recommend the ideal mattress design to match your template and the way you use your caravan.
